CentrePoint®

Insight Watch

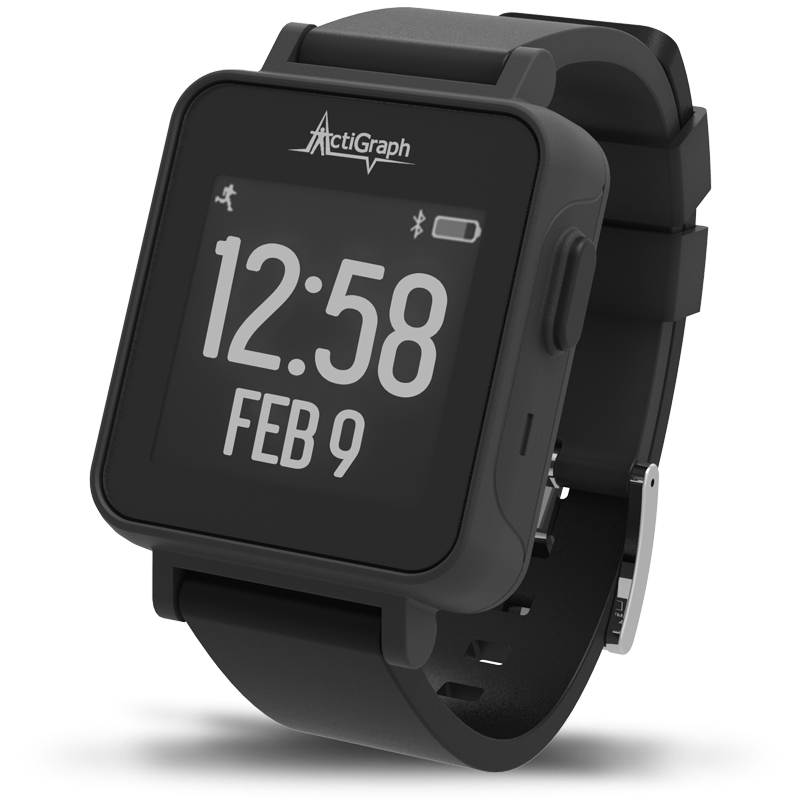

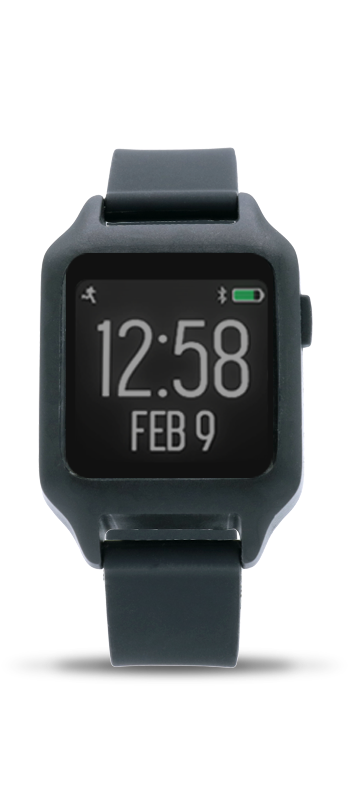

CentrePoint Insight Watch

FDA Cleared, Medical-Grade Actigraphy Monitoring

The compact and stylish CentrePoint Insight Watch captures and records continuous high-resolution raw acceleration data to provide objective, real-world physical activity, mobility, and sleep measures, in near real time.

Request Quote   Download Flyer
Declaration of Conformity
U.S. federal law restricts this device to sale by or on the order of a physician.

ActiGraph Digital Measures

The CentrePoint Insight Watch captures and records high resolution raw acceleration data, which are converted into a variety of objective activity and sleep measures using publicly available algorithms that were developed and validated by members of the academic research community. Available measures include:

  • Raw Acceleration (G's)
  • Activity Intensity
  • MVPA
  • Steps
  • Calories
  • MET Rates
  • Locomotion
  • Total Movement
  • Total Sleep Time (TST)
  • Sleep Efficiency
  • Wake After Sleep Onset (WASO)
  • Sleep Fragmentation
* The CentrePoint Insight Watch must be used in conjunction with the CentrePoint software platform and is not compatible with ActiLife. However, raw data files generated by the Insight Watch in CentrePoint can be post-processed using ActiLife.

CentrePoint Insight Watch Key Features

Real-Time Data Access

The CPIW passively transmits collected data, via mobile app or home data hub, to the cloud for near real-time detection of wear adherence and potential data trends. The rearchitected raw data system provides infinite scalability with 2x improved performance.

Patient-Centric Design

The CPIW looks and feels like a consumer smart watch. The single push button interface activates the backlight, making it easy to read date and time. Standard interchangeable wristbands can be customized to improve participant satisfaction, comfort, and compliance.

Optimized User Experience

Single push button interface, passive data capture and transfer, and a long* battery life help to simplify and enhance the patient experience.

30-Day Battery Life*

An extended 30-day battery life minimizes participant burden and the potential for missing data associated with frequent device charging, even during long periods of data collection.

Customizable Wristband

Standard interchangeable wristbands can be customized to improve patient satisfaction, comfort, and compliance.

Near Body Temperature Sensor

The CPIW now comes with an enabled near body temperature sensor, which has the potential to provide richer data insights, such as improved wear time monitoring and sleep scoring.**

* 30 days at default 32 Hz sample rate
** Temperature data is for investigational use only

CentrePoint Ecosystem

The cloud-based CentrePoint technology system includes an ecosystem of hardware and software tools that capture and manage real-world patient data collected during a clinical trial or research study.

CentrePoint Ecosystem

CentrePoint Insight Watch

The stylish and comfortable Insight Watch captures and records continuous, high resolution raw acceleration data.

CentrePoint Web Portal

This secure, permissions-based web portal provides instant access to near real-time patient outcomes and raw data files, site performance details, and overall study progress.

CentrePoint Data Hub

This communication gateway securely transmits data collected by the CentrePoint Insight Watch from the patient’s home to the CentrePoint cloud.

CentrePoint API

An available API makes it possible to integrate ActiGraph outcomes directly into our clients’ proprietary or third party EDC platforms.

*CentrePoint Insight Watch activity monitor is only capable of connecting with the CentrePoint Connect app.

CentrePoint

Insight Watch

Please contact our dedicated and knowledgeable Sales Team to learn more about the CentrePoint Insight Watch medical-grade activity monitor

Request Quote

CentrePoint Insight Watch Specifications

Dimensions

1.97 x 1.35 x 0.41 in

Sample Rate

32Hz-256Hz

Battery Life

30 Days


Data Storage

30 Days*/512MB

Dynamic Range

+/- 8G

Communication

USB/Bluetooth® LE 5


Water Resistance

IP57 1 meter, 30 minutes

Wear location

Wrist

Warranty

1 year


* Default 32 Hz sample rate

The CentrePoint Insight Watch is fully backward compatible with previous device models to ensure data comparability for our existing clients.

Regulatory Requirements

The CentrePoint Insight Watch is an FDA cleared Class II medical device within the United States and a Class I non-measuring medical device within the European Union that abides by the regulatory requirements listed below:

EU Directives Compliant:

  • Medical Devices Directive 93/42/EEC
  • Radio Equipment Directive 2014/53/EU
  • RoHS Directive 2011/65/EU Compliant
  • FCC Federal Register CFR 47, Part 15, Subpart B: 2017
  • FCC Part 15, Subpart C, Section 15.249
  • ICES-003 Interference Causing Equipment Standards for a Digital Apparatus
  • RSS-210 Certification of Radio Apparatus
IP57

The CentrePoint Insight Watch is dust protected and water resistant up to 1 meter of water for 30 minutes in accordance with IEC 60529.

All ActiGraph products are manufactured Lead Free and are RoHS Compliant.

510(k) Cleared Class II Medical Device K181077

IEC 60601-1-2 General requirements for basic safety and essential performance

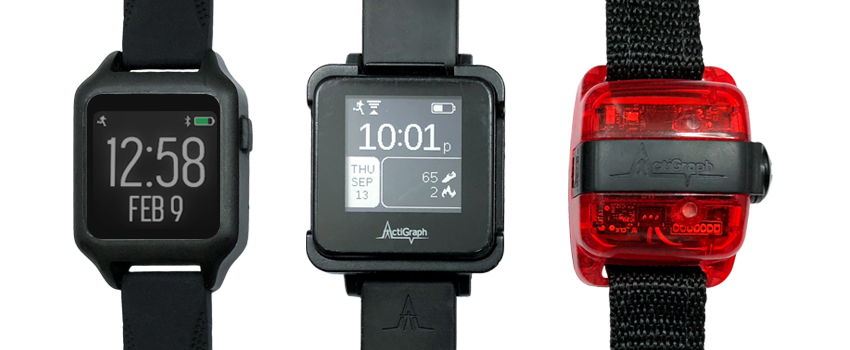

Compare all
